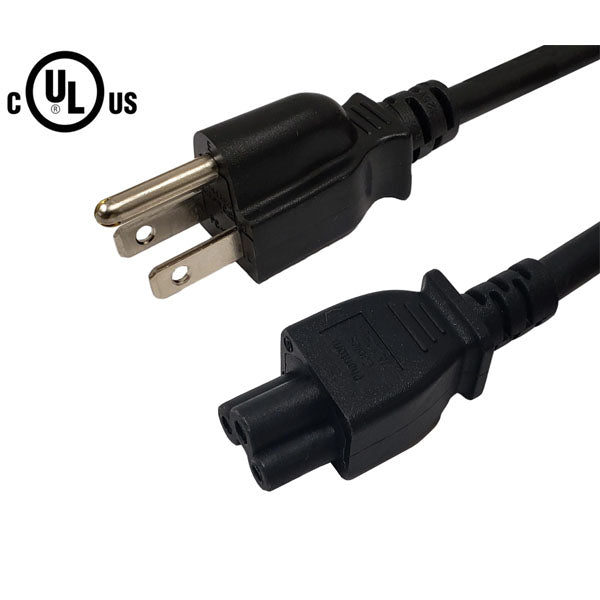

• The INF NCR PART #: 1449-C115-0037 ithaca 8000 straight blade power cord is a black, 12-foot UL approved 5-15P to C5 (cloverleaf) cable with three-prong plug and three-slot connector, displayed against a white background.

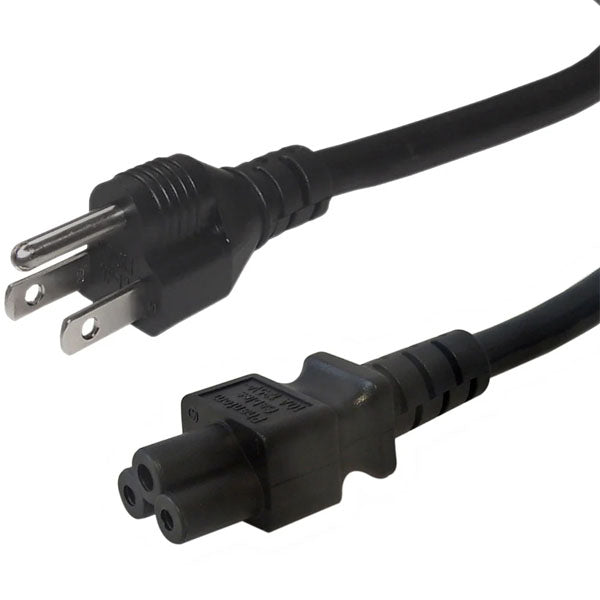

  • The INF NCR PART # 1449-C115-0037 is an Ithaca 8000 straight blade, 12-foot black power cord with a three-prong plug and three-slot connector, UL certified, shown on a white background.

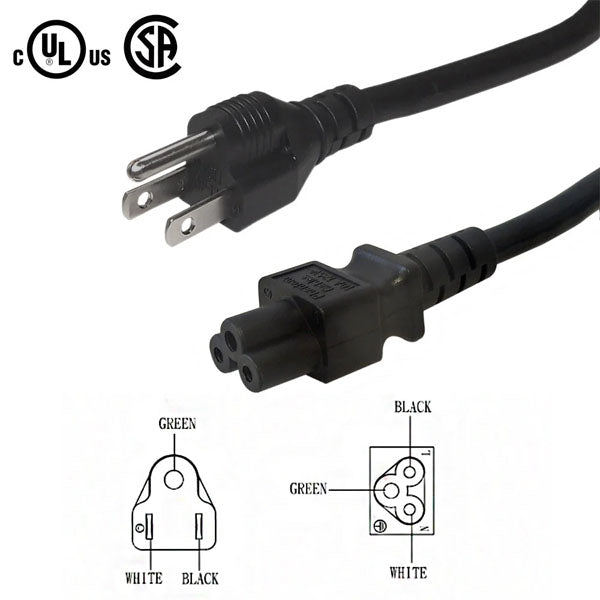

  • The image shows a black INF NCR PART #: 1449-C115-0037 Ithaca 8000 straight blade power cord (12 feet) with matching connector, wiring diagrams for green, white, and black prongs, plus UL and CSA certification logos in the top left.

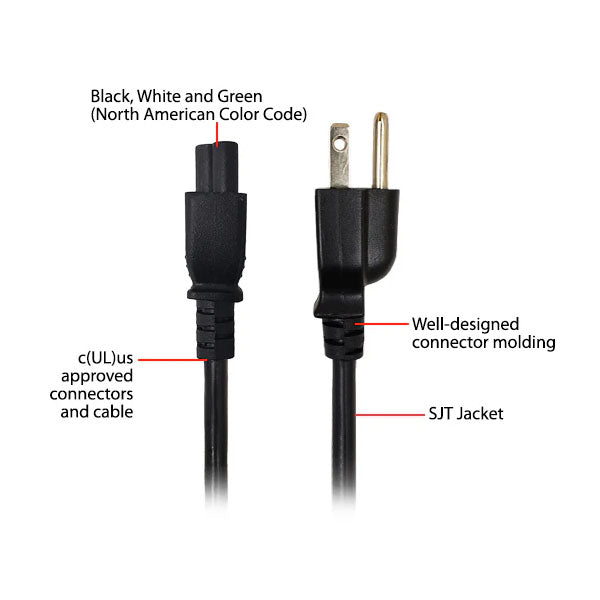

  • Two views of the INF NCR PART #1449-C115-0037 (Ithaca 8000 straight blade power cord, 12 ft): one shows the C5 connector, the other displays the 5-15P plug. Labels note color code, molding, UL approval, and SJT jacket details.

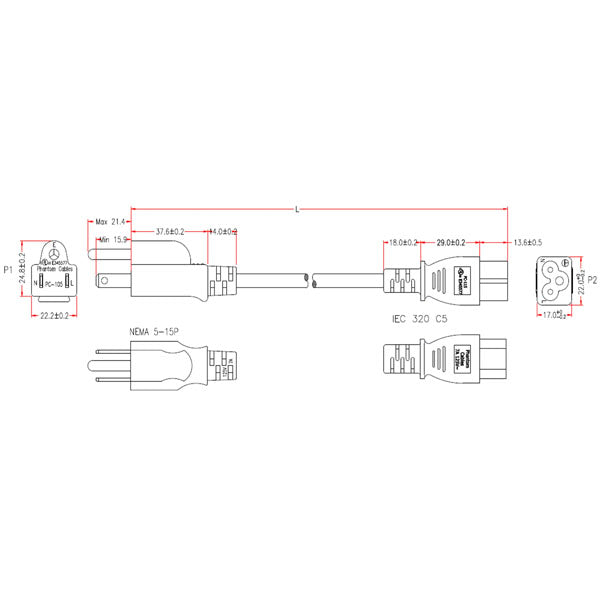

  • Technical drawing of INF NCR PART #: 1449-C115-0037 Ithaca 8000 straight blade power cord, 12ft UL approved, showing side/top views of NEMA 5-15P plug and IEC 320 C5 connector with measurements labeled in millimeters.
1 5

NCR PART #: 1449-C115-0037 DESCRIPTION: ithaca 8000 straight blade power cord-12Feet

NCR PART #: 1449-C115-0037 DESCRIPTION: ithaca 8000 straight blade power cord-12Feet

INF

PWC-116-12

$18.89 CAD
$18.89 CAD
Sale Sold out

Overview

This power cord consists of a 5-15P male on one end and a C5 female on the other end. It is typically used to connect a wall outlet to a AC/DC power supply or directly to equipment. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

Three black-and-white certification icons—Limited Lifetime Warranty, RoHS (with checkmark), and cULus—highlight the quality and safety of the INF SVGA HD15 Male to Female Cable, 15ft (NCR PART #: 1449-C036-0046).

Heavy Duty SJT Jacket

Molded strain relief combined with a heavy duty SJT jacket makes for a high quality, robust cable.

100% Continuity and High Voltage Tested

All cables are 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

c(UL)us Approved

Both cable and connectors use to manufacture these assemblies are c(UL)us approved. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.

Specifications

Physical Characteristics
Color Black
Number of Conductors 3 Conductor
Wire Gauge 18 AWG
Jacket Heavy duty SJT
Jacket Material 100% Virgin PVC - Polyvinyl Chloride
Jacket Fire Rating VW-1
Strain Relief Molded 100% Virgin PVC
Conductor Material 100% bare copper
Temperature Rating -20 deg C to 105 deg C
Connector(s)
Connector A NEMA 5-15P (3-prong)
Connector B IEC 60320 C5
Performance
Power Rating 7 Amp / 125 Volt
Approvals
5-15P c(UL)us
C5 c(UL)us
Cable c(UL)us
Environmental
RoHS Compliant
Reach Compliant
Conflict Minerals Compliant
Packaging Information
Package Quantity 1
