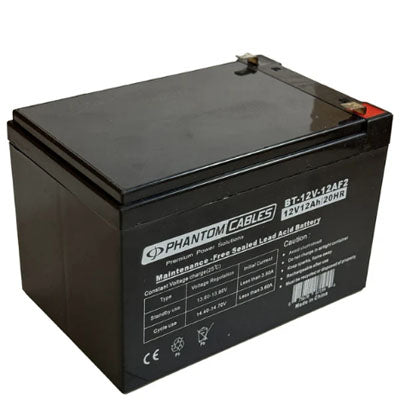

• The INF99 12V 12amp sealed lead acid battery, in black, is an ideal UPS replacement. Its rectangular design features metal terminals on top, with specifications clearly listed on the side for easy reference.

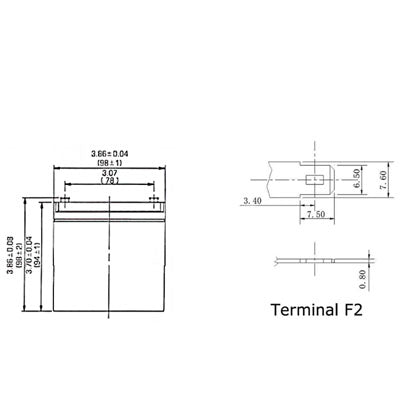

  • The INF99 Sealed Lead Acid Battery 12V 12A features a technical drawing with dimensions. The front view shows a height of 3.86 inches and a width of 3.03 inches, while the side view highlights Terminal F2, suitable for security alarm or UPS battery replacement applications.
1 2

INF99

Sealed Lead Acid Battery 12V 12amp

Sealed Lead Acid Battery 12V 12amp

$50.50 CAD
$50.50 CAD
Sale Sold out

Description: This battery is typically used as a replacement battery in UPS systems, security alarm systems or security lighting applications.

APPLICATIONS

Image highlighting three security product categories: INF99s UPS systems with Sealed Lead Acid Battery 12V 9amp on the left, security alarm systems centered with sensors and a control panel, and a versatile outdoor security lighting system on the right.



SPECIFICATIONS

Physical Characteristics
Type UPS Replacement
Voltage 12V
Amps 12A
Terminal Type F2
Tab Size 0.25 inch
Container Material ABS(UL-94HB)
Length 3.9 inches [98mm]
Width 6 inches [151mm]
Height 3.7 inches [94mm]
Operating Temperature 25±3℃ (77±5℃F )
Compatible Terminal Adapter
BT-ADT2T1 Battery terminal adapter F2 female (0.25") to F1 male (0.1875")
Performance
Internal Resistance Approx.90m٦
Max. Discharge Current 117A(5S)
Rated Capacity 12.0AH (20hr, 1.75V/cell,25℃/77℃F)
11.5AH (10hr, 1.75V/cell,25℃/77℃F)
11.0AH (5hr, 1.75V/cell,25℃/77℃F)
10.3AH (3hr, 1.75V/cell,25℃/77℃F)
7.75AH (1hr, 1.75V/cell,25℃/77℃F)
Cycle Use Charge Current Less Than 0.25CA
14.1V~14.7V@25℃(77℃F)Temp. Coefficient -30mV/℃
Floating Use No limit on Initial Charging Current Voltage
13.5V~13.8V@25℃(77℃F)Temp. Coefficient -20mV/℃
Capacity affected by
Temperature		 40℃ 103%
25℃ 100%
0℃ 86%
-15℃ 65%
Self-discharge 3 month Remaining capacity: 91%
6 month Remaining capacity:82%
12 month Remaining capacity:65%
Packaging Information
Product Weight 8.2 lbs [3.7kg]
Warranty Information
Warranty 6 Months
Compatibility Information
Model Number APC Back-UPS BK650
APC Back-UPS BK650MC
APC Back-UPS BK650MUC
APC Back-UPS BK650X06
APC Back-UPS BP650S
APC Back-UPS BP650IPNP
APC Back-UPS BP650PNP
APC Back-UPS BP650S
APC Back-UPS BP650SUS
APC Smart-UPS SU620NET
APC Smart-UPS SU650
APC Smart-UPS SUVS650
Belkin UPS S6C500-USB
Exide NetUPS 700
Powerware UPS 5105-700
