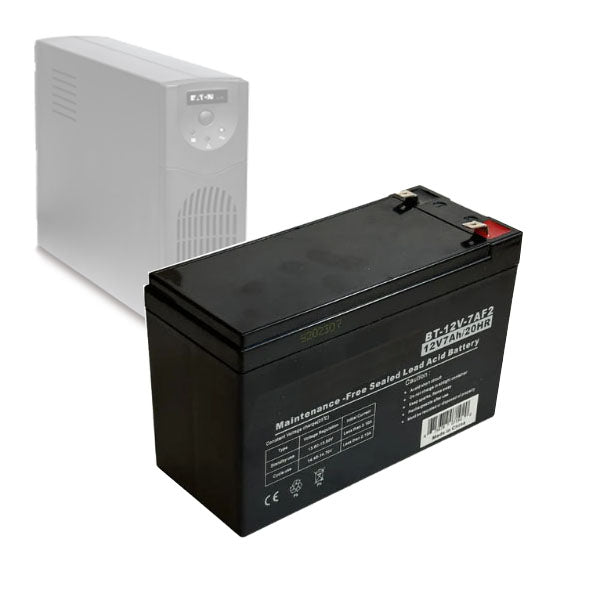

  • The INF99 Sealed Lead Acid Battery 12V 7amp, model BT-12V-7AF2, is black and rectangular with 12V7Ah/20HR specs. Its maintenance-free, ideal for UPS replacement or security alarms, and has two top terminals—one red and one black.

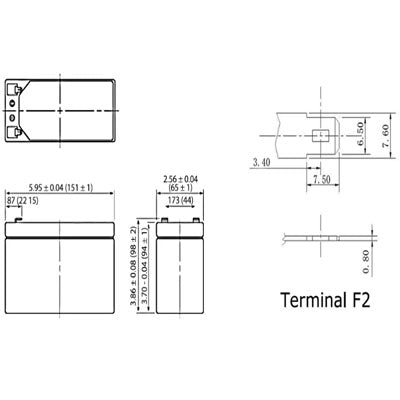

  • Technical drawing of the INF99 Sealed Lead Acid Battery 12V 7A with dimensions: front view—151 mm width, 94.25 mm height; side view—64.9 mm depth. Designed as a UPS replacement battery with F2 terminal and various connector dimensions.
1 3

Sealed Lead Acid Battery 12V 7amp

Sealed Lead Acid Battery 12V 7amp

INF99

BT-12V7AF2

$35.70 CAD
$35.70 CAD
Sale Sold out

Description: This battery is typically used as a replacement battery in UPS systems, security alarm systems or security lighting applications.

APPLICATIONS

Image highlighting three security product categories: INF99s UPS systems with Sealed Lead Acid Battery 12V 9amp on the left, security alarm systems centered with sensors and a control panel, and a versatile outdoor security lighting system on the right.



SPECIFICATIONS

Physical Characteristics
Type UPS Replacement
Voltage 12V
Amps 7A
Terminal Type F2
Tab Size 0.25 inch
Container Material ABS(UL-94HB)
Length 5.94 inches [151mm]
Width 2.56 inches [65mm]
Height 3.70 inches [100mm]
Operating Temperature 25±3℃ (77±5℃F )
Compatible Terminal Adapter
BT-ADT2T1 Battery terminal adapter F2 female (0.25") to F1 male (0.1875")
Performance
Internal Resistance Approx.25mΩ
Max. Discharge Current 112.5A(5S)
Rated Capacity 7.00AH (20hr, 1.75V/cell,25℃/77℃F)
6.40AH (10hr, 1.75V/cell,25℃/77℃F)
5.95AH (5hr, 1.75V/cell,25℃/77℃F)
4.55AH (1hr, 1.75V/cell,25℃/77℃F)
Cycle Use

Initial Charging Current less than 2.10A

Voltage 14.10-14.40V
Floating Use No limit on Initial Charging Current Voltage
13.5V~13.8V@25℃(77℃F)Temp. Coefficient -20mV/℃
Capacity affected by
Temperature		 40℃ 102%
25℃ 100%
0℃ 85%
-15℃ 64%
Self-discharge 3 month Remaining capacity: 91%
6 month Remaining capacity:82%
12 month Remaining capacity:64%
Packaging Information
Product Weight 5.45 lbs [2.5kg]
Warranty Information
Warranty 6 Months
Compatibility Information
Model Number APC Smart-UPS SP500DR
APC Smart-UPS SU360SX
APC Smart-UPS SU420NET
APC Smart-UPS SUVS420
APC Smart-UPS AP280
APC Smart-UPS AP330
APC Smart-UPS AP330XT
APC Smart-UPS AP360
APC Smart-UPS AP360SX
APC Smart-UPS 550 ES
Belkin UPS F6C225-USB
Belkin UPS F6C250-USB
Belkin UPS F6C325-SER
Belkin UPS F6C350-USB
Belkin UPS F6C425
Belkin UPS F6C425-SER
Belkin UPS F6C500-USB
Belkin UPS F6C525
Belkin UPS F6C625
Belkin UPS F6C650
Belkin UPS F6C650-USB
Belkin UPS F6C750-AVR
Exide NetUPS 450
Powerware UPS 3105-700
Powerware UPS 3110-550
Powerware UPS 3110-700
Powerware UPS 3115-300
Powerware UPS 3115-420
Powerware UPS 5105-450
Powerware UPS 5110-700
Tripp-Lite Office UPS BC300
Tripp-Lite Office UPS BC400 STANDBY
Tripp-Lite Office UPS BC420
Tripp-Lite Office UPS BC450
Tripp-Lite Office UPS BC500 Internet
Tripp-Lite Office UPS BC500 LAN
Tripp-Lite Office UPS OFFICE 500
Tripp-Lite Omni UPS OMNISMART 450
Tripp-Lite Smart UPS SMART 400
Tripp-Lite Smart UPS SMART 500
