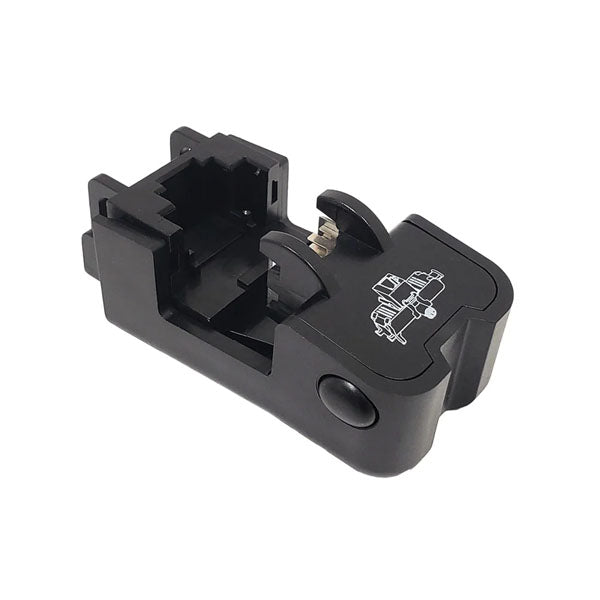

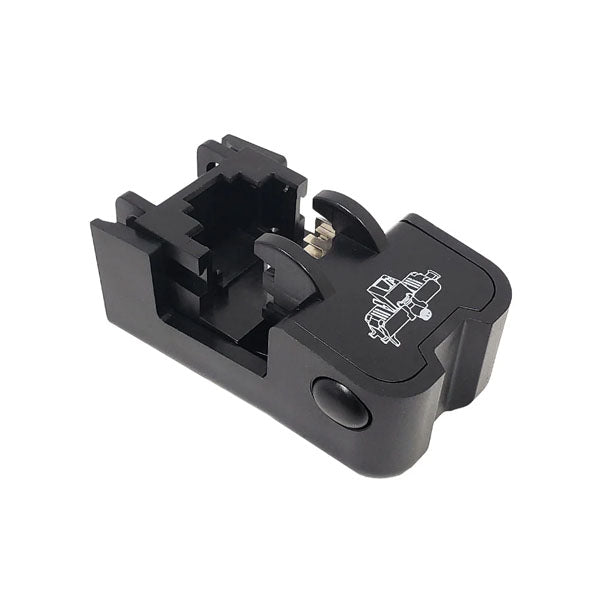

180 Degree Die Set for Punch-Down Tool

180 Degree Die Set for Punch-Down Tool

INF

TL-PUM-180-DIESET

$53.48 CAD
$53.48 CAD
Sale Sold out

Overview

This die set is fits both the TL-PUM-180 and TL-PUM-90 handles. It can be used in terminating 180 degree 110 style jacks.

Interchangeable with Punchdown Tool

This die set is interchangeable with the TL-PUM-180 punch-down tool; which can terminate all wires at once / terminate jacks eight times faster.

Specifications

Physical Characteristics
Color Black
Material Polycarbonate, UL 94V-2
SPCC, 2.0mm thickness with 5~8um nickelage
Operating Function
 For Keystone Jacks
Connectors
Terminal Block Type 110
Compatible Jacks
JK-C6PB1-XX
JK-C6A-XX
 RJ45 Cat6 Slim Profile 180 Degree Jack, 110 Punch-Down or Tool-Less
RJ45 CAT6A Slim Profile 180 Degree Jack, 110 Punch-Down Style or Tool-Less
Compatible Tool
TL-PUM-90 Multipair 110 Style Punch-Down Tool for 90 Degree Jacks
TL-PUM-180
 Multipair 110 Style Punch-Down Tool for 180 Degree Jacks
Packaging Information
Packaging Quantity 1
Product Weight 0.13 lbs [0.05 kg]
