Multipair 110 Style Punch-Down Tool for 180 Degree Jacks
Multipair 110 Style Punch-Down Tool for 180 Degree Jacks
INF
SKU:TL-PUM-180
Couldn't load pickup availability
Overview

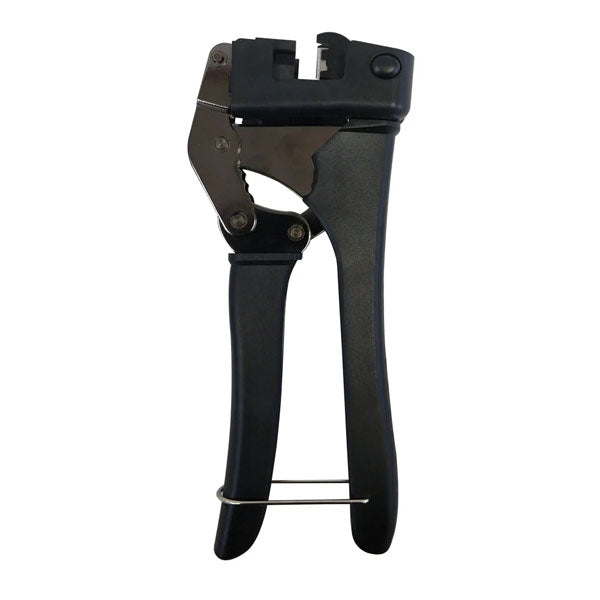

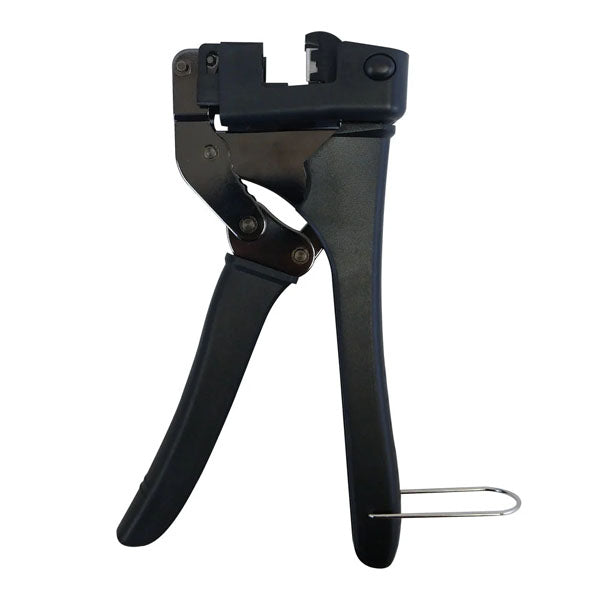

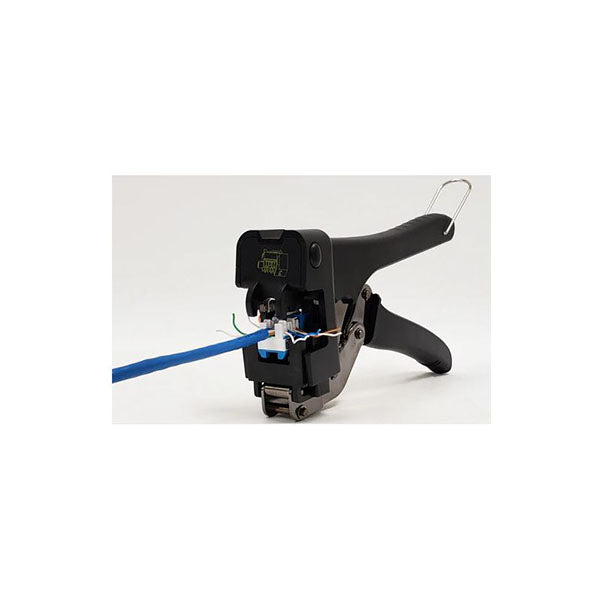

This punch-down tool is used to terminate 180 degree 110 style jacks. It allows for faster and more accurate jack termination with one simple motion. It also features built-in blades which cut off excess wire after termination. The tool is designed with a durable steel body with an ergonomically friendly handle.
Reduces installation timeThis punch-down tool saves time and increases accuracy by seating and terminating all wires at once with a simple squeeze of the handle, it allows you to terminate jacks eight times faster. Easy-to-use with efficiencyThe built-in blades cut off the excess wires aftertermination which makes terminating jacks a simple one-handed operation. The ergonomically designed handle reduces hand fatigue which speeds up thetermination process. |
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Material | Polycarbonate,UL 94V-2 SPCC,2.0mm thickness with 5~8um nickelage |
| OperatingFunction |
ForKeystone Jacks |
| OperatingTemperature |
-20°C to +70°C |
| StorageTemperature |
-20°C to +80°C |
| Ratchet |
No |
| Connectors | |
| Terminal Block Type | 110 |
| Compatible Jacks | |
| JK-C6PB1-xx JK-C6A-xx |
RJ45 Cat6 Slim Profile 180 Degree Jack, 110 Punch-Down or Tool-Less RJ45 CAT6A Slim Profile 180 Degree Jack, 110 Punch-Down Style or Tool-Less |
| Compatible Die Set | |
| TL-PUM-90-DIESET |
90 Degree Die Set for Punch-Down Tool |
| TL-PUM-180-DIESET | 180 Degree Die Set for Punch-Down Tool |
| Packaging Information | |
| Packaging Quantity | 1 |
| Product Weight | 1.14 lbs [0.52 kg] |
